LONG HAND GRIP MAXIMAL

MAXIMAL

Elegant long hand grip with optional possibility of insert filling to align with door decor/door surface finish. The long hand grip is prepared with impressive WC/bathroom locking. The shape follows the complete collection of door and window fitting Maximal with emphasis to align the entire interior the only one design range of fitting.

This long hand grip is produced from massive brass, manually polished and grinded. For maximal selection is available in 9 surface finishes.

design: Roman Ulich

Technical information

Assembly system assembling long handgrips against each other with set screws M6
Assembly time 2 - 4 min., variant WC/ bathroom 5-10 min.
Dimensional application standardly for door thickness 38 – 42 mm, bigger door thickness should be specified to deliver longer mounting screws
Preparation into door drilling hole
Surface finishes SNi nickel matt, SNi-gr nickel matt grinded, Cr polished chrome, Ms brass natural, Ms-A brass antique, Cr-K black chrome grinded, TIN-C titanium chrome matt, TIN-B titanium brown matt, TiN-K titanium black matt
Lenght 297 mm
Dimension 33×297 mm (W×H), output over the surface of the door 40 mm
Variant WC/bathroom external WC mechanism including rosettes 33×47 mm + mini lock
Variant cylindrical cover rosettes 33×47 mm, th. 10 mm + mini lock
Assembly instructions + preparation into door Assembly instructions Hand grip long Maximal (PDF)
Assembly instructions Hand grip long Maximal cylindrical (PDF)
Assembly instructions Hand grip long Maximal WC (PDF)
Drawing Hand grip long Maximal milling (PDF), (DWG)
Drawing Hand grip long Maximal cylindrical milling (PDF), (DWG)
Drawing Hand grip long Maximal WC milling (PDF), (DWG)

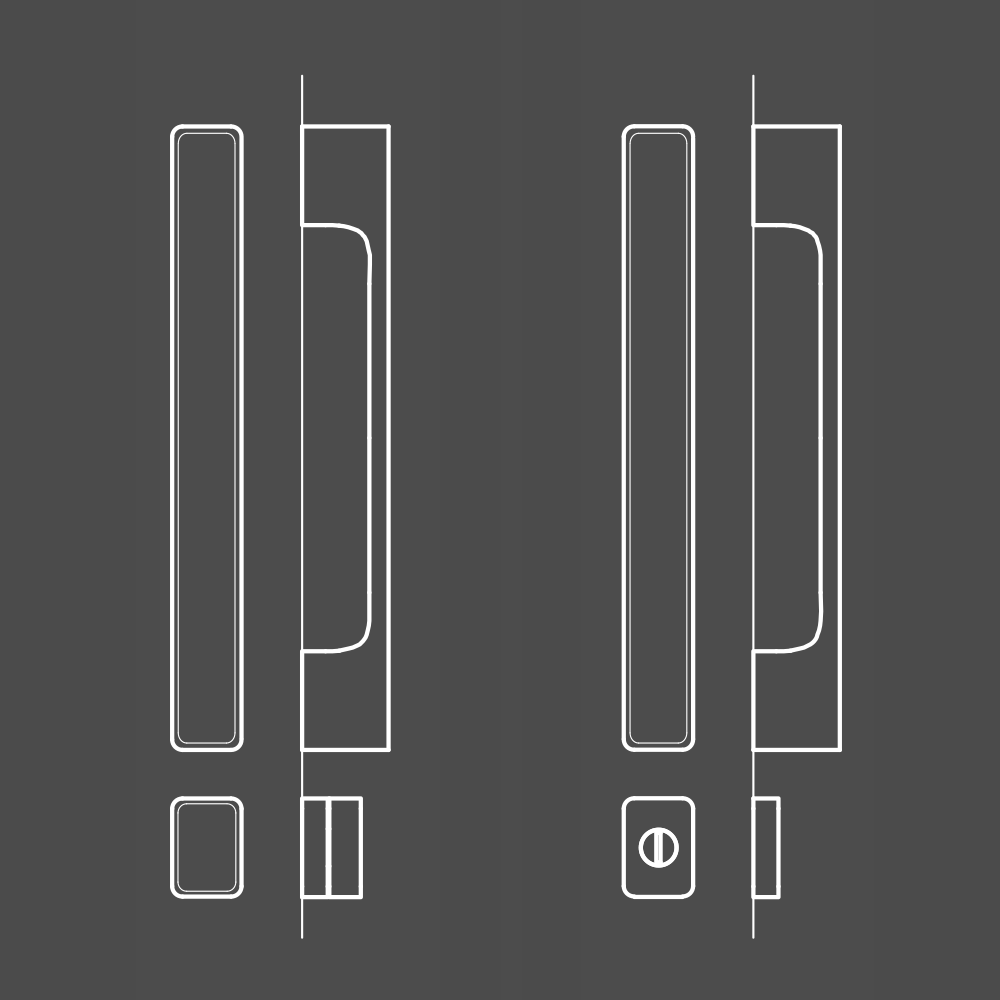

Technical drawings

...

standard

...

cylindrical

...

WC IN

WC EX
