LONG HAND GRIP MIMOLIMIT

MIMOLIMIT

Wooden long pull handle with pleasant grip ergonomics with metal inner construction of the modular system for delivery in various lengths up to 2400 mm. The metal part is produced from massive brass, for maximal selection is available in 6 surface finishes.
The wooden part is available in 5 different woods.

design: Barbora Škorpilová

Technical information

Assembly system  assembling long handgrips against each other with set screws M6
Assembly time 1-2 min., variant WC/bathroom 5-10 min.
Dimensional application standardly for door thickness 38-45 mm, bigger door thickness should be specified to deliver longer mounting screws
Preparation into door drilling hole
Surface finishes SNi-gr nickel matt grinded, Cr polished chrome, Ms brass natural, TIN-C titanium chrome matt, TIN-B titanium brown matt, TiN-K titanium black matt
Trees teak, elm, walnut, oak, bleached oak
Lengths 340, 640, 940, 1240, 1840, 2440 mm
Dimension width 24 mm, output over the surface of the door 61 mm
Variant WC/ bathroom external mini WC mechanism + mini lock
Variant cylindrical magnetic cover rosettes diameter 54 mm, th. 5 mm + mini lock
Assembly instructions + preparation into door Assembly instructions Hand grip long Mimolimit (PDF)
Assembly instructions Hand grip long Mimolimit cylindrical (PDF)
Assembly instructions Hand grip long Mimolimit WC (PDF)
Drawing Hand grip long Mimolimit milling (PDF), (DWG)
Drawing Hand grip long Mimolimit cylindrical milling (PDF), (DWG)
Drawing Hand grip long Mimolimit WC milling (PDF), (DWG)

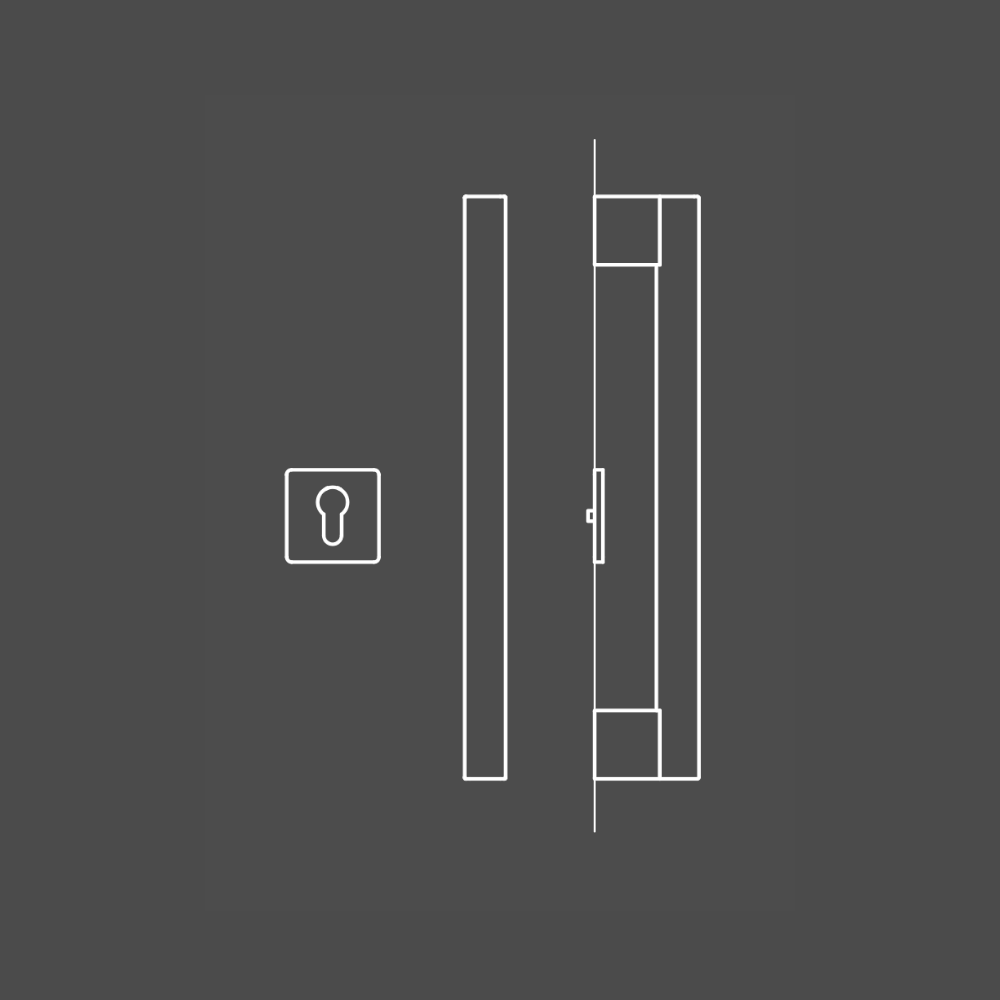

Technical drawings

...

standard

...

cylindrical

...

WC IN

WC EX
