PULL HANDLE JOO

JOO

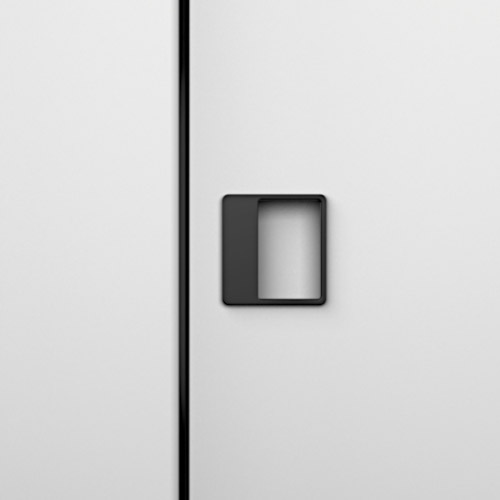

Square sunken pull handle easy to use with 2 - 4 fingers. Pull handle with a possibility of changing / replacing the internal magnetic plate to match the surface / color of the pull handle with the door or to make the door control area more visible.
Metal pull handle, available in black titanium surface finish, nickel matt and polished chrome.

design: Roman Ulich

Technical information

Assembly system screwing the base plates against each other with 4 screws, covering the mounting screws with VISIBLE magnetic plate
Assembly time 1–2 min., variant WC/bathroom 3-5 min.
Dimensional application standardly for door thickness 38-42 mm, bigger door thickness should be specified to deliver longer mounting screws
Preparation into door milling hole
Surface finishes SNi matt nickel, TiN-K titanium black matt, Cr polished chrome
Dimension 84×89 mm (W×W), output over the surface of the door 3 mm
Variant WC/bathroom  external mini WC mechanism + mini lock
Variant cylindrical magnetic cover rosettes diameter 54 mm, th. 5 mm + mini lock
Assembly instructions + Preparation into door Assembly instructions pull handle Joo (PDF)
Assembly instructions pull handle Joo WC (PDF)
Drawing pull handle Joo milling (PDF), (DWG)
Drawing pull handle Joo WC milling (PDF), (DWG)

Technical drawings

...

standard

...

cylindrical

...

WC IN

WC EX
