PULL HANDLE KONZERVA 110

KONZERVA 110

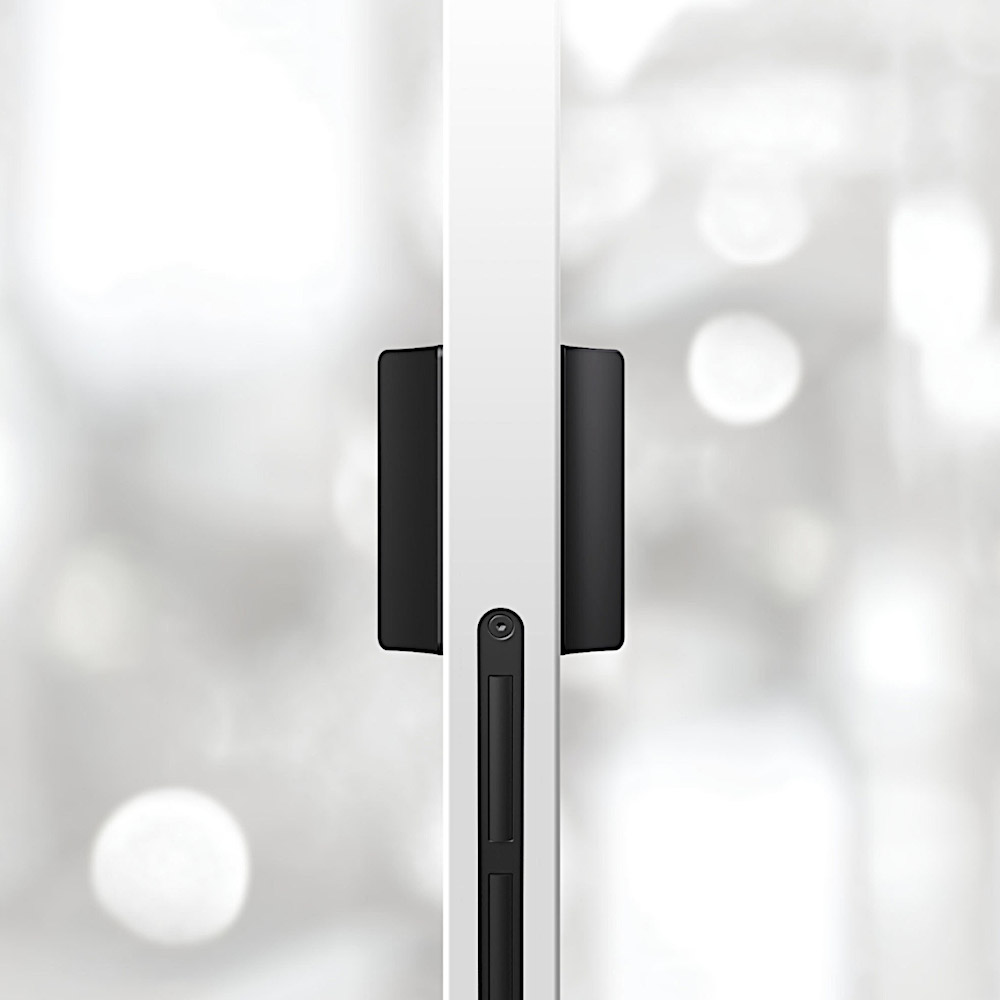

Smaller version of the pull handle with whole hand control. Handle ergonomics with slight rounding of the handles gripping part, with the possibility of changing / replacing the internal magnetic plate to align the surface / color of the pull handle with the door, or to make the door control area more visible.
Metal pull handle, available in black titanium surface finish and nickel matt.

design: Roman Ulich

Technical information

Assembly system	screwing the base plates against each other with 4 screws, covering the mounting screws with visible magnetic plate
Assembly time	1 - 2 min., variant WC/ bathroom 3 - 5 min.
Dimensional application	standardly for door thickness 38 - 42 mm, bigger door thickness should be specified to deliver longer mounting screws
Preparation into door	milling hole
Surface finishes	SNi nickel matt, TiN-K titanium black matt
Dimension	67×110 mm (W×H), output over the surface of the door 25 mm
Variant WC/ bathroom	external mini WC mechanism + mini lock
Variant cylindrical	magnetic cover rosettes diameter 54 mm, th. 5 mm + mini lock
Assembly instructions + preparation into door	Assembly instructions Pull handle Konzerva 110 (PDF) Assembly instructions Pull handle Konzerva 110 WC (PDF) Drawing Pull handle Konzerva 110 milling (PDF), (DWG) Drawing Pull handle Konzerva 110 WC Milling (PDF), (DWG)

Technical drawings

standard

cylindrical

WC IN

WC EX
